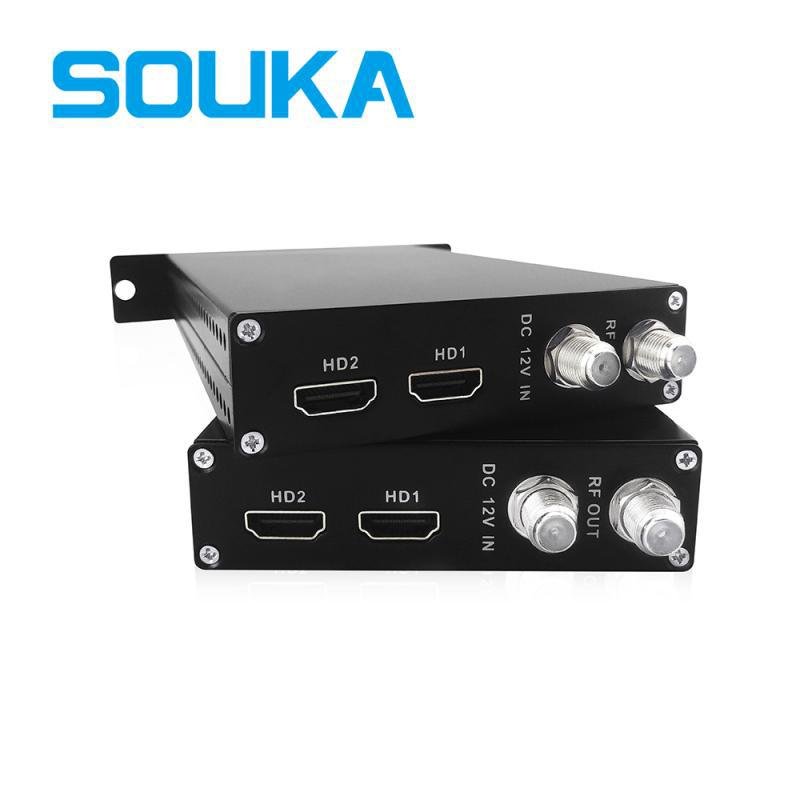

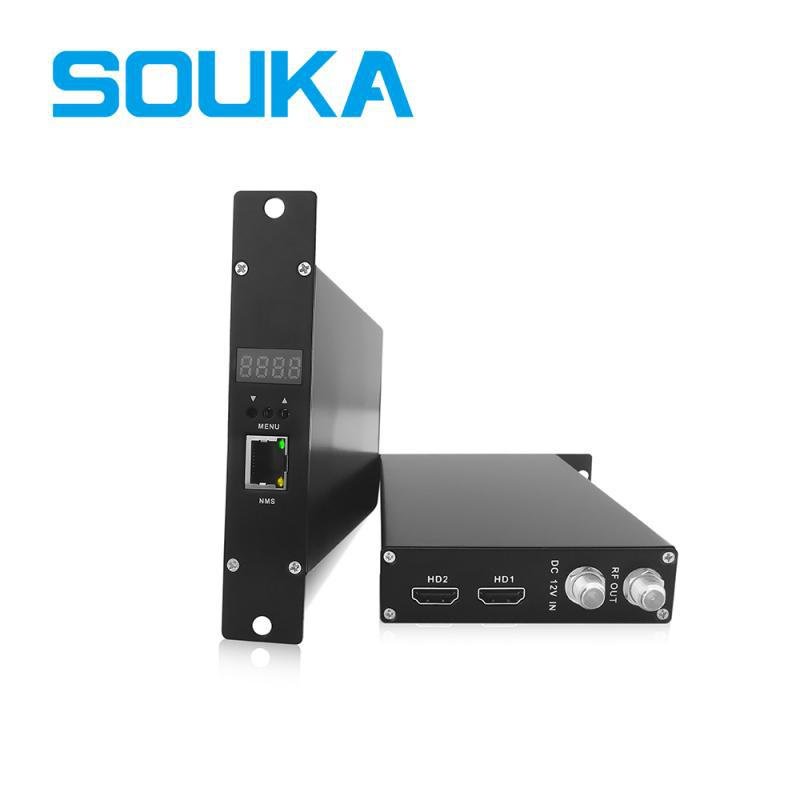

SKD296X Dual HD Input Modulator with ISDB-T and DVB-T Modulation

SKD296X Dual HD Input Modulator with ISDB-T and DVB-T Modulation

Request project pricing and delivery details

This product is presented for B2B sourcing and technical evaluation. Pricing, MOQ, customization and lead time are provided according to your project requirements.

Project pricing on request
OEM / ODM support available
Technical consultation before quotation

Request Quote

Share your quantity, market and technical requirements to receive an accurate quotation.

SKU SKD296X

Categories Encoder Modulator

Tags Digital Modulator, high definition dual modulator, two hd input isdbt modulator, dual rf isdbt modulator, dvbt modulator with 2 inputs, Dual HD Input Modulator

Description

Product Overview

SKD296X Dual HD Input Modulator with ISDB-T and DVB-T Modulation is a digital RF modulation platform. It is built for hospitality projects that must encode room, signage, or operational video sources into managed RF channels for local distribution. Key specification focus includes Primary Input: ISDB-T input, Broadcast Standard: ISDB-T, QAM, and Channel Capacity: 16 CHANNELS. Transforms local video sources into structured RF services for guestrooms or building-wide television systems.

For engineering review, SKD296X Dual HD Input Modulator with ISDB-T and DVB-T Modulation is typically assessed around source acquisition through ISDB-T input, broadcast compatibility around ISDB-T, QAM, channel planning around 16 CHANNELS, and power requirements of DC12V.

Project Fit

In hospitality projects, SKD296X Dual HD Input Modulator with ISDB-T and DVB-T Modulation is typically evaluated as a digital RF modulation platform within the delivery chain from headend processing to guest-facing service presentation. It is a practical fit when broadcast compatibility is expected around ISDB-T, QAM and channel planning is built around 16 CHANNELS.

Fits hotels that need to turn HDMI or CVBS sources into RF channels for in-house television distribution
Useful in digital CATV headend builds where integrators need compact channel creation from local video sources
Suitable for projects that want a controlled modulation layer without overcomplicating the rack design

Key Specification Table

The table below highlights the fields most buyers, consultants, and project engineers usually verify first.

Specification	Details
Model	SKD296X
Device Class	Modulator
Deployment Role	Local channel encoder modulator
Primary Input	ISDB-T input
Broadcast Standard	ISDB-T, QAM
Input Connector	HDMI 1.4 VIDEO Encoding H.264 Input Resolution 19201080_60P; 19201080_50P; 19201080_60i; 19201080_50i; 1280720_60P; 1280720_50P Bitrate 2 ~ 18 Mbps AUDIO Encoding MPEG 1 Layer II, AAC Sample Rate 32K/ 44.1K/ 48KHz Bitrate 384kbps MODULATION DVB-T Standard DVB-T COFDM Bandwidth 6 /7 /8 M Constellation QPSK, 16QAM, 64QAM MER ≥ 32 dB Transmission Mode 2K, 4K, 8K Code rate 1/2, 2/3, 3/4, 5/6, 7/8 Guard Interval 1/32, 1/16, 1/8, 1/4 ISDB-T Standard ISDB-T Bandwidth 6 M Constellation 4QAM, 16QAM, 64QAM MER ≥ 36 dB Transmission Mode 2K, 4K, 8K Code rate 1/2, 2/3, 3/4, 5/6, 7/8 Guard Interval 1/32, 1/16, 1/8, 1/4 OUTPUT

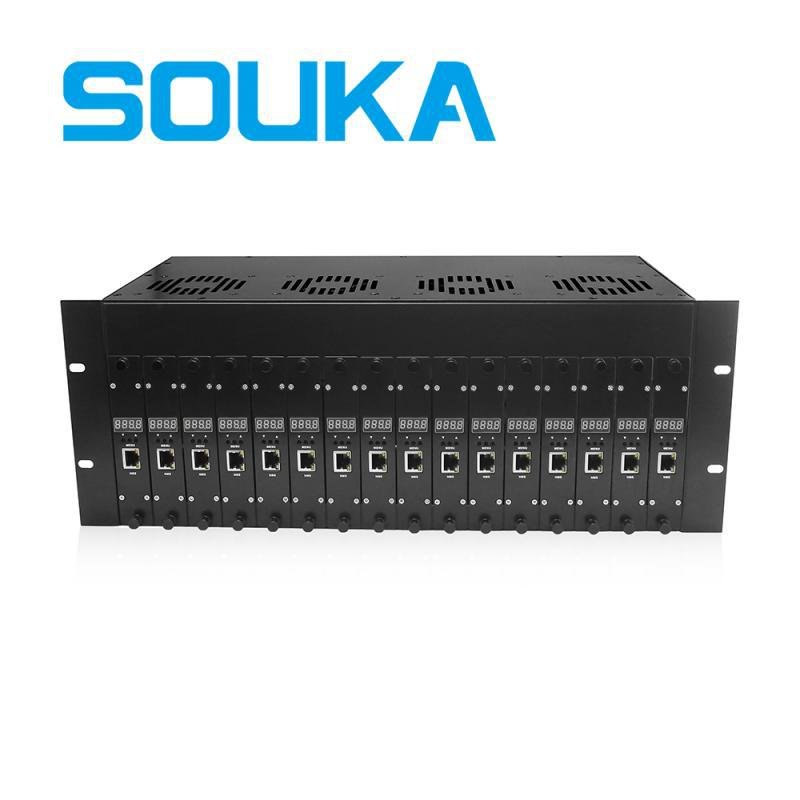

Channel Capacity	16 CHANNELS
Power Supply	DC12V
Dimension	13616525 (mm)
Item NO.	SKD296X

Core Capabilities

The current model profile supports the following engineering and procurement checkpoints.

Covers broadcast environments based on ISDB-T, QAM
Supports service planning around 16 CHANNELS
Uses DC12V as the declared power requirement

Value For Hospitality Projects

Transforms local video sources into structured RF services for guestrooms or building-wide television systems
Supports cleaner rack planning by combining encoding and modulation inside one product path
Helps operators add hotel information, signage, or self-produced channels into the existing television network

Detailed Technical Specifications

The following tables organize the available technical data into clearer review blocks for project design and purchasing.

General Specification

Specification	Details
Model	SKD296X
Broadcast Standard	ISDB-T, QAM
Item NO.	SKD296X
Brand	QINGLANG
Product Category	Encoder Modulator
Device Class	Modulator
Deployment Role	Local channel encoder modulator

Signal And Interfaces

Input Connector	HDMI 1.4 VIDEO Encoding H.264 Input Resolution 19201080_60P; 19201080_50P; 19201080_60i; 19201080_50i; 1280720_60P; 1280720_50P Bitrate 2 ~ 18 Mbps AUDIO Encoding MPEG 1 Layer II, AAC Sample Rate 32K/ 44.1K/ 48KHz Bitrate 384kbps MODULATION DVB-T Standard DVB-T COFDM Bandwidth 6 /7 /8 M Constellation QPSK, 16QAM, 64QAM MER ≥ 32 dB Transmission Mode 2K, 4K, 8K Code rate 1/2, 2/3, 3/4, 5/6, 7/8 Guard Interval 1/32, 1/16, 1/8, 1/4 ISDB-T Standard ISDB-T Bandwidth 6 M Constellation 4QAM, 16QAM, 64QAM MER ≥ 36 dB Transmission Mode 2K, 4K, 8K Code rate 1/2, 2/3, 3/4, 5/6, 7/8 Guard Interval 1/32, 1/16, 1/8, 1/4 OUTPUT
Channel Capacity	16 CHANNELS
Primary Input	ISDB-T input

Mechanical And Power

Power Supply	DC12V
Dimension	13616525 (mm)

Commercial Reference

These baseline fields help procurement teams keep model identity and order handling aligned during quotation and delivery.

Brand	QINGLANG
Item NO.	SKD296X

Deployment Considerations

Before final selection, confirm the following project-side assumptions with engineering and operations teams.

Confirm whether the source side is HDMI, AV, or mixed and how many simultaneous encoded channels the property requires
Review the target RF standard and any loop-through or IP handoff expectations during system design
Plan rack space, cable routing, and local source device availability before site installation
