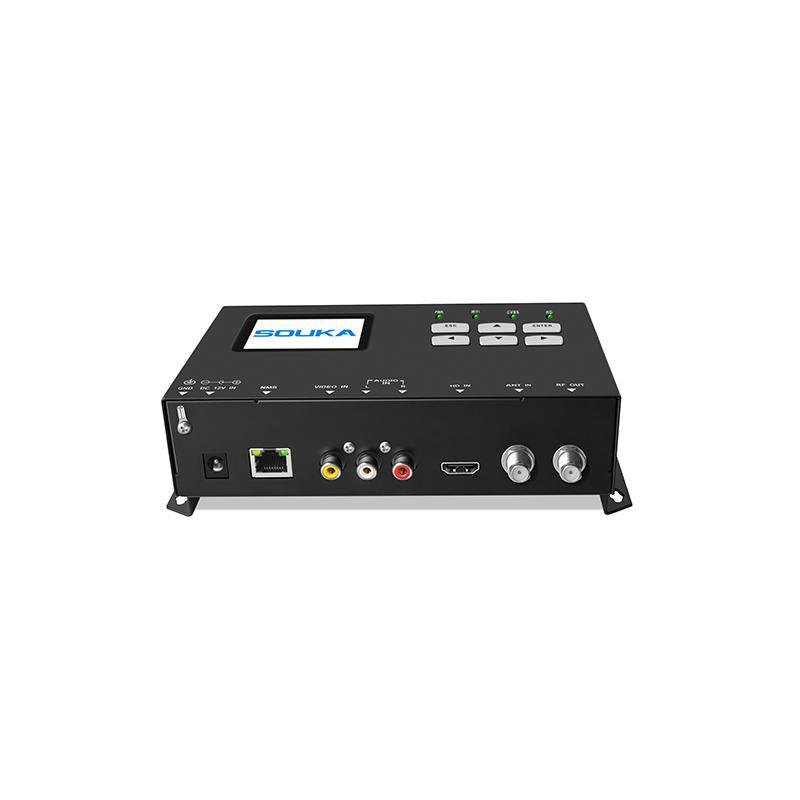

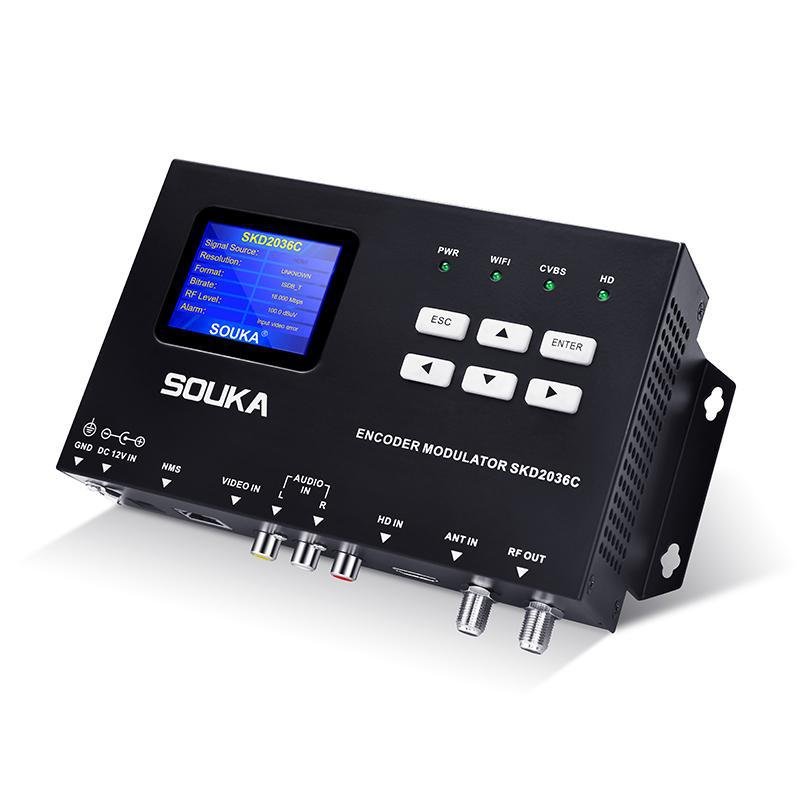

SKD203X DVB-T and ISDB-T Encoder Modulator

Name: SKD203X DVB-T and ISDB-T Encoder Modulator
Brand: QINGLANG
SKU: SKD203X

SKD203X DVB-T and ISDB-T Encoder Modulator is a multi-channel encoder platform. It is built for hospitality projects that must encode room, signage, or operational video sources into managed RF channels for local distribution. Key specification focus includes Broadcast Standard: ISDB-T, QAM. Transforms local video sour...

Request project pricing and delivery details

This product is presented for B2B sourcing and technical evaluation. Pricing, MOQ, customization and lead time are provided according to your project requirements.

Project pricing on request
OEM / ODM support available
Technical consultation before quotation

Request Quote

Share your quantity, market and technical requirements to receive an accurate quotation.

SKU SKD203X

Categories Encoder Modulator

Tags brazil isdbt digital modulator, hd encoder to dvbt rf modulator, hd and cvbs digital modulator, hd to isdbt modulator, 64 qam isdbt modulator, ISDB-T Encoder Modulator

Description

Product Overview

For engineering review, SKD203X DVB-T and ISDB-T Encoder Modulator is typically assessed around broadcast compatibility around ISDB-T, QAM and power requirements of DC12V.

Project Fit

In hospitality projects, SKD203X DVB-T and ISDB-T Encoder Modulator is typically evaluated as a multi-channel encoder platform within the delivery chain from headend processing to guest-facing service presentation. It is a practical fit when broadcast compatibility is expected around ISDB-T, QAM.

Fits hotels that need to turn HDMI or CVBS sources into RF channels for in-house television distribution
Useful in digital CATV headend builds where integrators need compact channel creation from local video sources
Suitable for projects that want a controlled modulation layer without overcomplicating the rack design

Key Specification Table

The table below highlights the fields most buyers, consultants, and project engineers usually verify first.

Specification	Details
Model	SKD203X
Device Class	Encoder
Deployment Role	Local channel encoder modulator
Broadcast Standard	ISDB-T, QAM
Input Connector	HDMI 1.4 or CVBS VIDEO Encoding H.264 Input Resolution 19201080_60P; 19201080_50P; 19201080_60i; 19201080_50i; 1280720_60P; 1280720_50P 720480_60i; 720576_50i Bitrate 2 ~ 18 Mbps AUDIO Encoding MPEG 1 Layer II Sample Rate 32K/ 44.1K/ 48KHz Bitrate 384kbps MODULATION DVB-T Standard DVB-T COFDM (6/7/8 M) Constellation QPSK,16QAM,64 QAM MER ≥ 38 dB Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 Guard Interval 1/32, 1/16, 1/8, 1/4 Transmission Mode 2K,8K ISDB-T Standard ARIB STB-B31 (6M) Constellation 16QAM, 64QAM MER ≥ 38 dB Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 Guard Interval 1/32, 1/16, 1/8, 1/4 Transmission Mode 2K,4K,8K
Power Supply	DC12V
Specification	Details
Product Category	Encoder Modulator
Item NO.	SKD203X

Core Capabilities

The current model profile supports the following engineering and procurement checkpoints.

Covers broadcast environments based on ISDB-T, QAM
Uses DC12V as the declared power requirement

Value For Hospitality Projects

Transforms local video sources into structured RF services for guestrooms or building-wide television systems
Supports cleaner rack planning by combining encoding and modulation inside one product path
Helps operators add hotel information, signage, or self-produced channels into the existing television network

Detailed Technical Specifications

The following tables organize the available technical data into clearer review blocks for project design and purchasing.

General Specification

Specification	Details
Model	SKD203X
Broadcast Standard	ISDB-T, QAM
Product Category	Encoder Modulator
Item NO.	SKD203X
Brand	QINGLANG
Lead Time	2 days after payment confirmed
Device Class	Encoder
Deployment Role	Local channel encoder modulator

Signal And Interfaces

Input Connector

HDMI 1.4 or CVBS VIDEO Encoding H.264 Input Resolution 1920*1080_60P; 1920*1080_50P; 1920*1080_60i; 1920*1080_50i; 1280*720_60P; 1280*720_50P 720*480_60i; 720*576_50i Bitrate 2 ~ 18 Mbps AUDIO Encoding MPEG 1 Layer II Sample Rate 32K/ 44.1K/ 48KHz Bitrate 384kbps MODULATION DVB-T Standard DVB-T COFDM (6/7/8 M) Constellation QPSK,16QAM,64 QAM MER ≥ 38 dB Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 Guard Interval 1/32, 1/16, 1/8, 1/4 Transmission Mode 2K,8K ISDB-T Standard ARIB STB-B31 (6M) Constellation 16QAM, 64QAM MER ≥ 38 dB Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 Guard Interval 1/32, 1/16, 1/8, 1/4 Transmission Mode 2K,4K,8K

Mechanical And Power

Power Supply	DC12V

Commercial Reference

These baseline fields help procurement teams keep model identity and order handling aligned during quotation and delivery.

Brand	QINGLANG
Item NO.	SKD203X

Deployment Considerations

Before final selection, confirm the following project-side assumptions with engineering and operations teams.

Confirm whether the source side is HDMI, AV, or mixed and how many simultaneous encoded channels the property requires
Review the target RF standard and any loop-through or IP handoff expectations during system design
Plan rack space, cable routing, and local source device availability before site installation
